Description

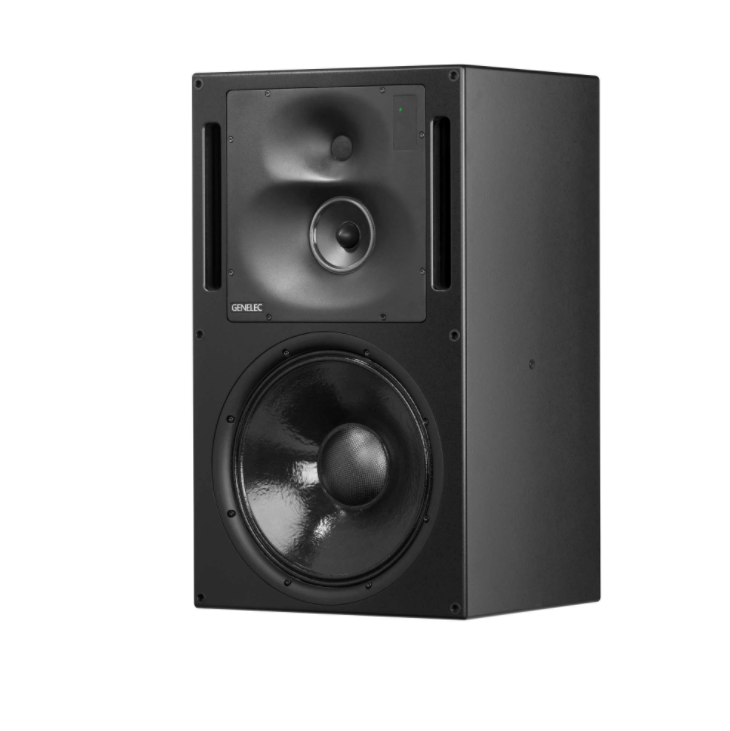

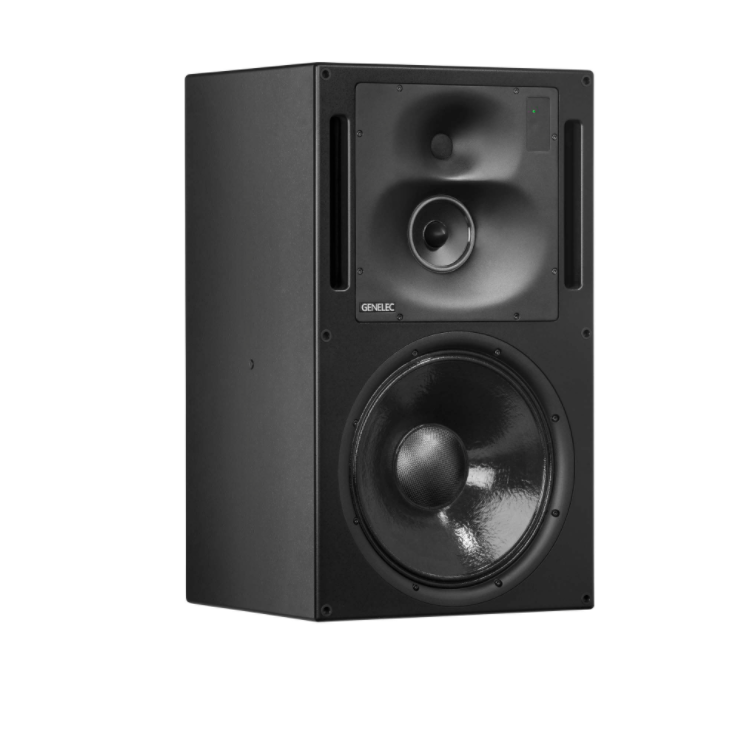

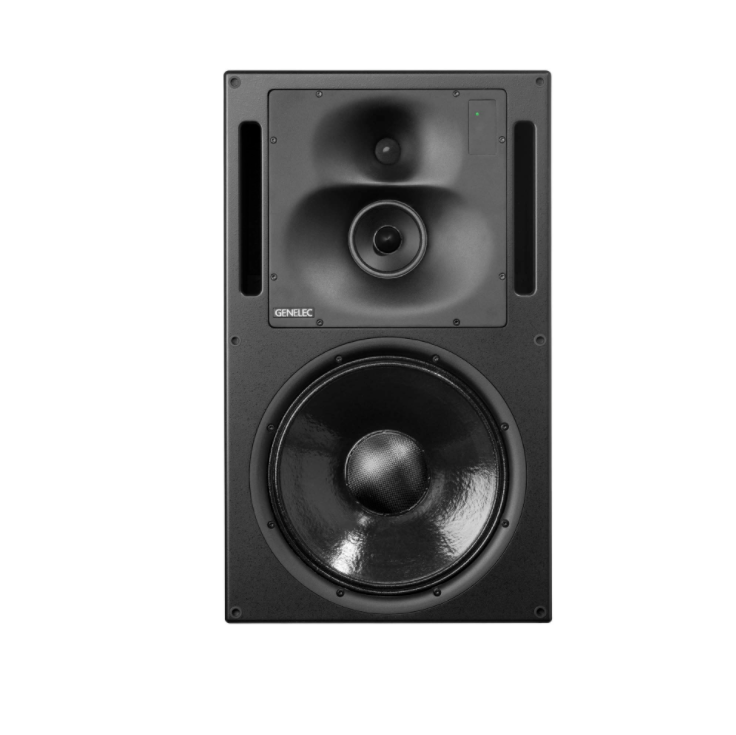

Genelec 1238A SAM™ Active Monitor

Our largest three-way design, the 1238A adapts to your acoustic space to deliver high-SPL reference precision.

Power and precision

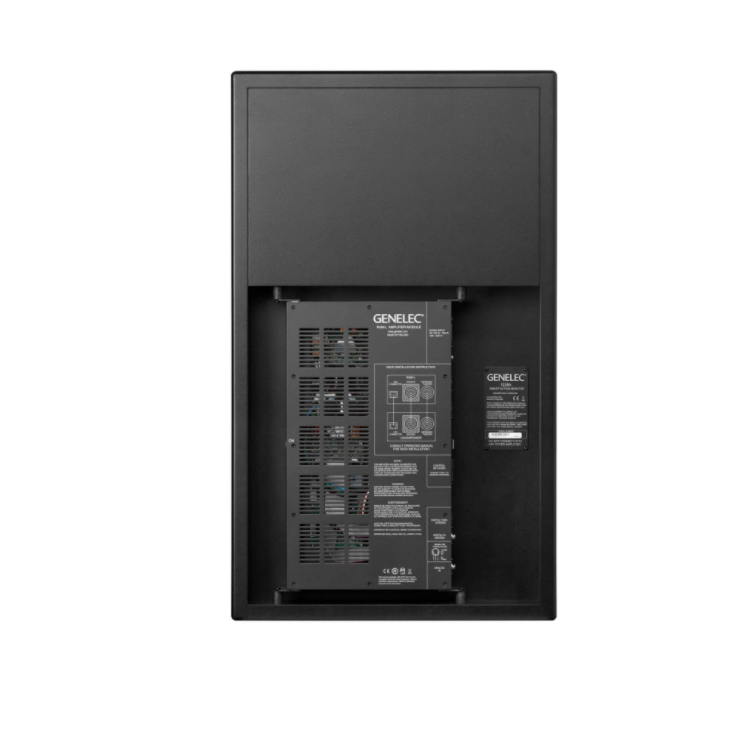

The 1238A builds on the great legacy of the Genelec 1038, offering the same revered acoustic characteristics but now with onboard Smart Active Monitoring technology. And thanks to the RAM-L integrated amplifier module – which can be rack-mounted away from the enclosure – the 1238A can create a flush-mounting main monitoring system that combines unrivalled neutrality with a staggering 121 dB of peak SPL.

Truly optimised listening

In addition to its truthful transparency, the 1238A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution, from mono to immersive. This makes the 1238A is the perfect choice for professionals in larger rooms who demand perfect mix translation to other studios and systems.

Specifications:

Maximum sound pressure level: 121 dB

Free field frequency response: 30 Hz – 22 kHz (-6 dB)

Accuracy of frequency response: ± 2.5 dB (35 Hz – 20 kHz)

Drivers: Bass Ø 385 mm, 155/32 inch + Midrange Ø 125 mm, 429/32 inch + Treble Ø 25 mm, 1 inch metal dome + DCW™

Amplifier power per channel: 500 W Bass + 250 W Midrange (both Class D) + 200 W Treble (Class AB)

Loudspeaker H x W x D: 810 x 480 x 420 mm, 317/8 x 1829/32 x 1617/32 inch

RAM L size: 3U / 19 inch
Weight incl. RAM L amplifier: 57 kg / 126 lb

Audio Connectors: XLR analogue input, XLR digital AES/EBU in- and output, RJ45

GLM Network: Management and control system GLM™
