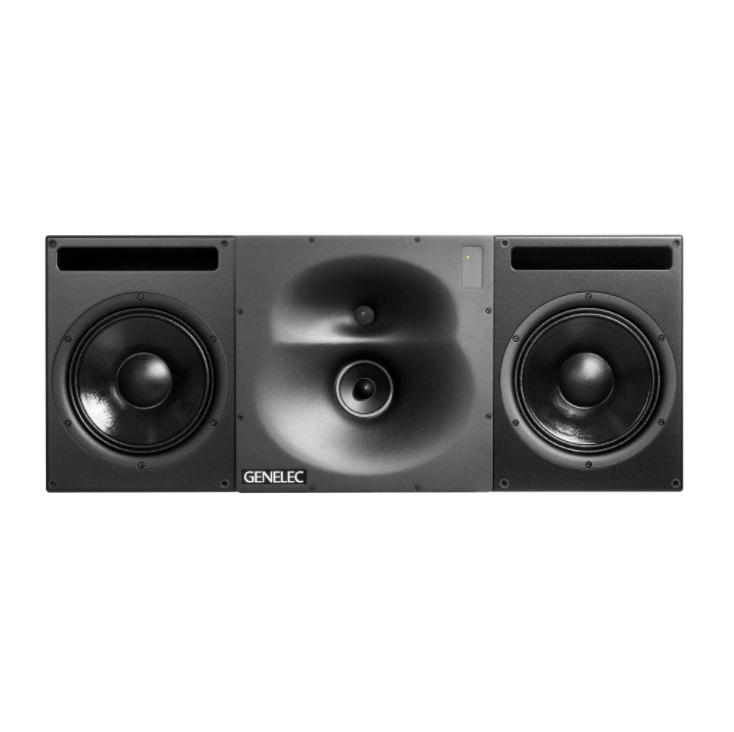

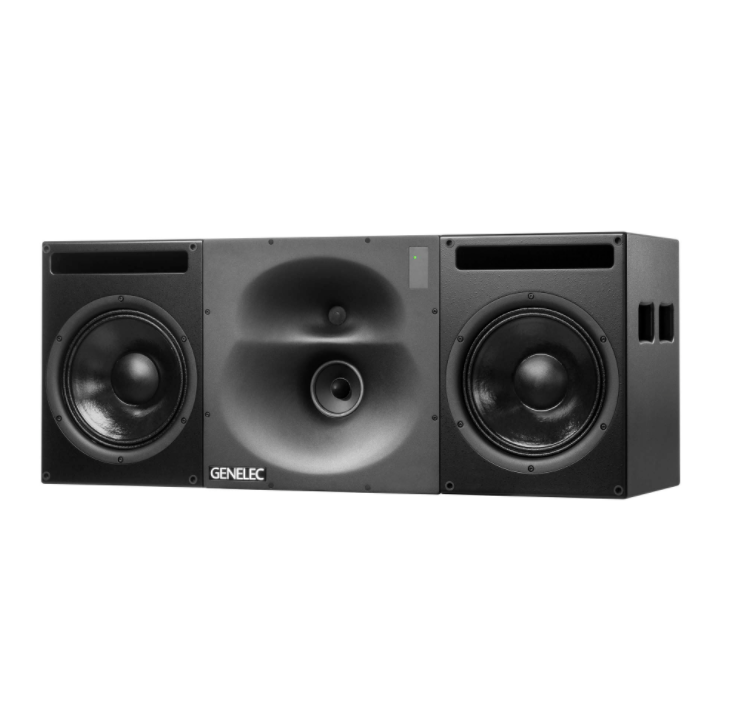

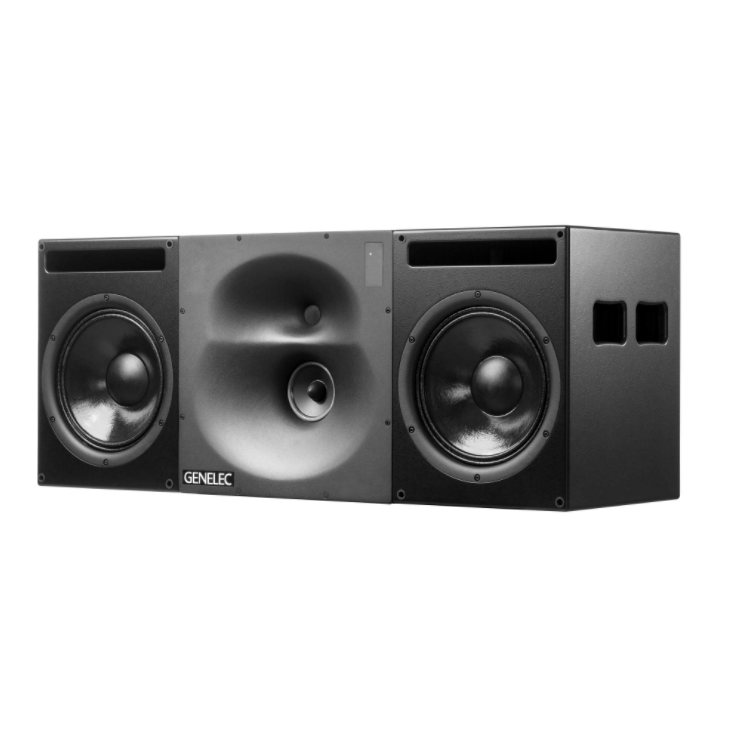

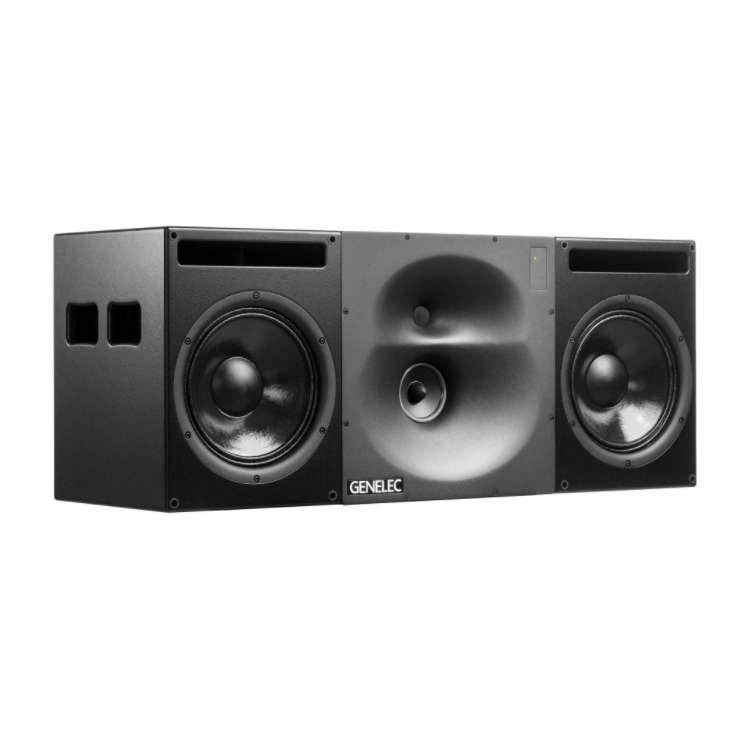

Genelec 1234AC SAM™ Active Monitor
The 1234AC is a smart main Active monitor for use in demanding film and post production work, where perf screen or hi-res LED displays are employed.
Make accurate decisions

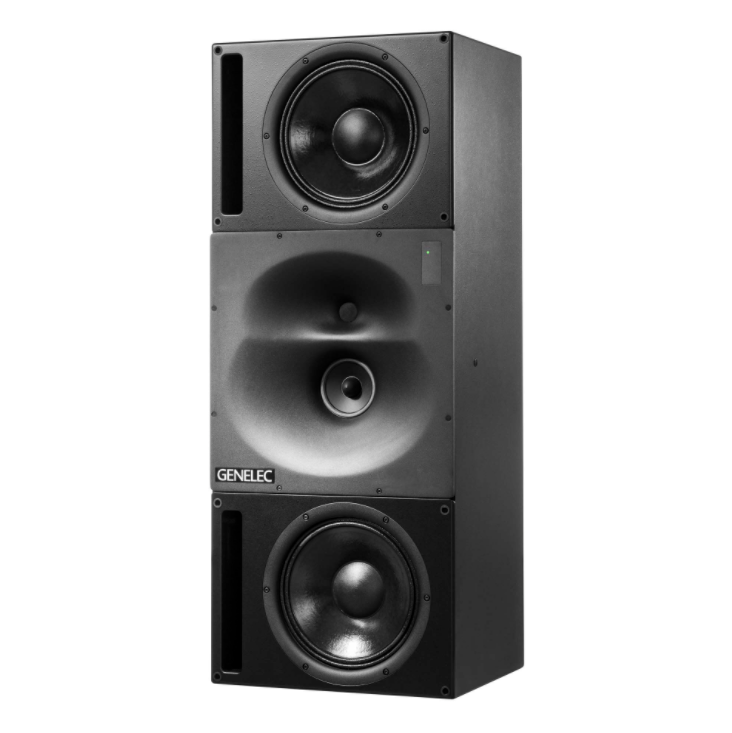

Designed for mixing stages and large control rooms, the directivity and SPL capability of the 1234AC is compatible with typical screen channels in commercial cinema, but with the higher performance required for professional monitoring. The 1234AC may be used in either horizontal or vertical orientation – thereby tailoring the LF directivity to both the room and the monitor placement – while precise on and off axis imaging allows you to make accurate mix decisions even when sitting outside the narrow sweet spot of most studio monitors.
Optimise for your room
The 1234AC tightly integrates with our GLM calibration application, which compensates for detrimental room influence, perf screen effects and delay, regardless of whether you work with traditional or large immersive formats. GLM also builds complete monitoring systems, so that the 1234AC can easily be combined with other types of Genelec smart monitors and subwoofers to deliver truly optimised reference monitoring – and material that translates perfectly.
Maximum sound pressure level: 125 dB
Free field frequency response: 29 Hz – 21 kHz (-6 dB)
Accuracy of frequency response: ± 2 dB (34 Hz – 20 kHz)
Drivers: Bass 2 x Ø 305 mm, 12 inch + Midrange Ø 125 mm, 429/32 inch + Treble Ø 25 mm, 1 inch metal dome + DCW™
Amplifier power per channel: 2 x 750 W Bass + 400 W Midrange + 250 W Treble (all Class D)
Loudspeaker H x W x D: 489 x 1210 x 412 mm, 191/4 x 475/8 x 167/32 inch
RAM XL size: 3U / 19 inch
Loudspeaker weight: 79.5 kg / 175.3 lb
RAM XL weight: 11.2 kg / 24.7 lb
Audio Connectors: XLR analogue input, XLR digital AES/EBU in- and output, RJ45 GLM Network
Management and control system: GLM™
