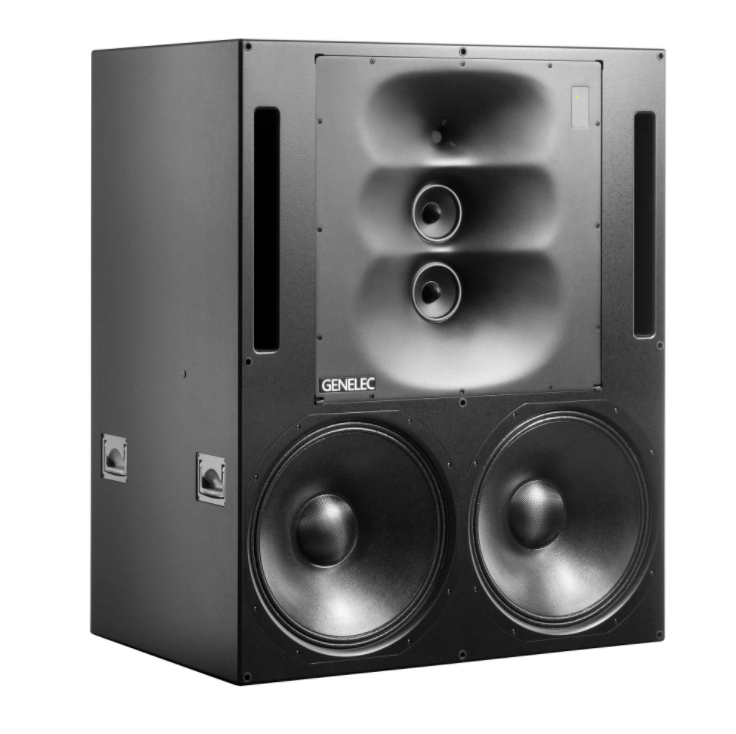

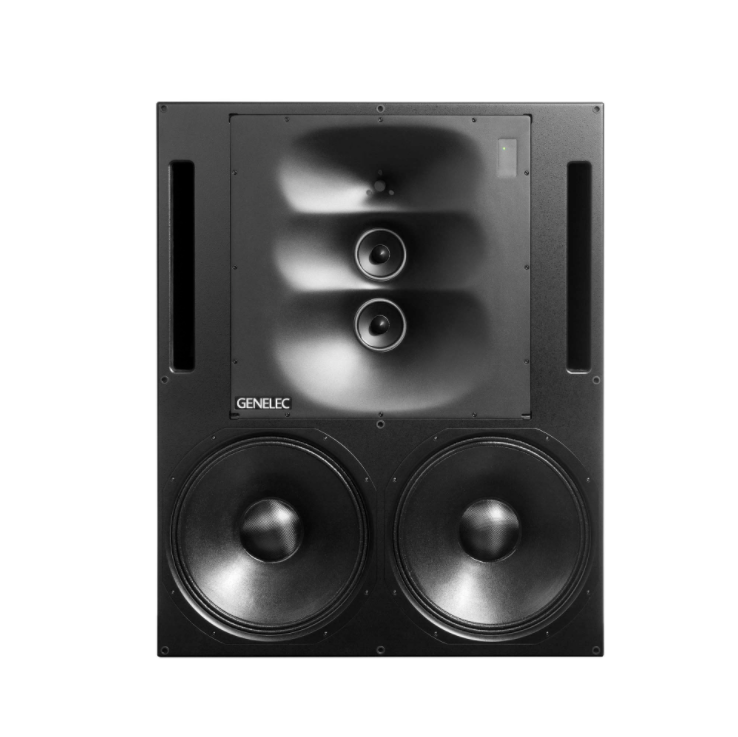

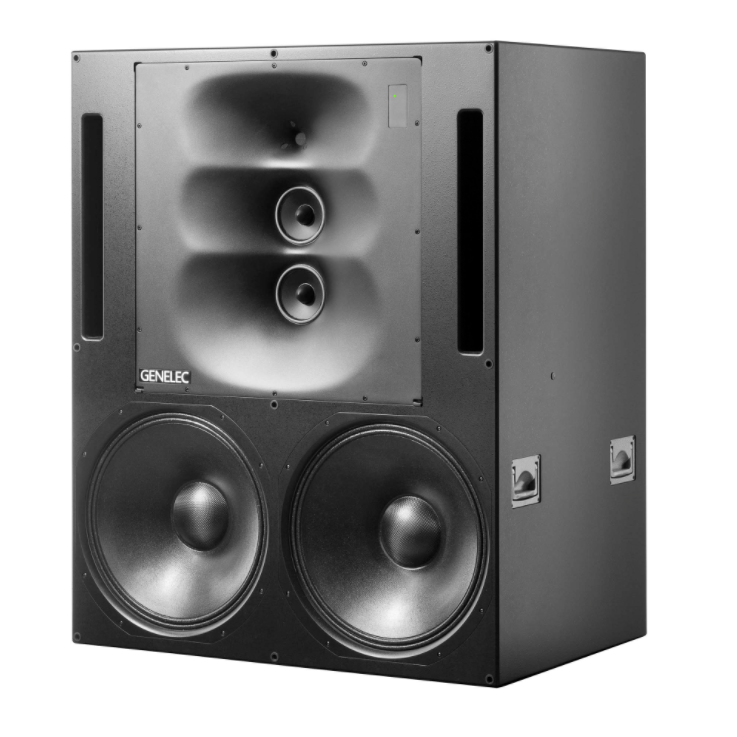

Genelec 1236A SAM™ Active Monitor
The flagship of our range. The intelligence of the 1236A is seamlessly integrated into the finest example of acoustic engineering yet produced in more than 40 years of Genelec history.
Power and finesse
This is where power and finesse combine to create a truly extraordinary main monitor. Producing peak SPLs of over 130 dB, the 1236A’s staggering muscle is backed up with exquisitely precise imaging and a wide, neutral sweet spot that is the natural choice for satisfying multiple listeners in larger control rooms. All the vibe and energy you want, with detail to match.
The 1236A offers new levels of control through its tight integration with our GLM calibration software. GLM analyses your room’s characteristics and intelligently tailors the monitors’ frequency response, level, distance delay and more to provide a truly optimised listening experience – and mixes that translate perfectly to other rooms and systems.
Maximum sound pressure level: 130 dB
Free field frequency response: 17.5 Hz – 26 kHz (-6 dB)
Accuracy of frequency response: ± 2 dB (21 Hz – 20 kHz)
Drivers: Bass 2 x Ø 458 mm, 181/32 inch + Midrange 2 x Ø 125 mm, 429/32 inch + Treble Ø 25 mm, 1 inch compression + DCW™
Amplifier power per channel: 2 x 1000 W Bass + 2 x 400 W Midrange + 250 W Treble (all Class D)
Loudspeaker H x W x D: 1180 x 960 x 650 mm, 4615/32 x 3725/32 x 2519/32 inch
RAM XL size: 3U / 19 inch
Loudspeaker weight: 182.0 kg / 401.2 lb
RAM XL weight: 11.2 kg / 24.7 lb
Audio Connectors: XLR analogue input, XLR digital AES/EBU in- and output, RJ45 GLM Network
Management and control system: GLM™
