SVS PB16-Ultra Subwoofer
One Subwoofer to Rule Them All. Introducing the PB16-Ultra.
An unrelenting passion for breathtaking bass performance and engineering perfection guided every aspect of the PB16-Ultra subwoofer’s development. Groundbreaking technology, rigorous design and extreme testing in real world and laboratory environments allowed SVS to achieve unmatched low frequency extension and output capabilities all while keeping it amazingly detailed and articulate. The culmination of all SVS design advancements, PB16-Ultra represents an incomparable bass experience. Nothing else comes close.
When designing the biggest and most formidable driver ever used in an SVS subwoofer, it was of utmost importance to meet or exceed the same supreme standards of control and accuracy as every other subwoofer SVS manufactures. One huge advancement that allows the PB16-Ultra to handle the crushing force of a 16-inch driver is the 8-inch edge wound voice coil, the largest ever deployed in a consumer subwoofer. This innovation ensures ultra-low distortion and pinpoint control at the highest drive levels resulting in incredible output and low frequency extension. By nature, larger drivers are more difficult to control, but the unprecedented voice coil design ensures accuracy in frequency response and speed in transients without ever sounding boomy.
Pushing the driver are four massive, dedicated toroidal ferrite magnets that unleash a staggering 95mm peak to peak excursion and the highest levels of motor force and palpable SPLs. The light and rigid 16-inch Ultra driver cone consists of a premium fiberglass resin composite with optimal stiffness to mass ratio to maximize movement of air and sonic energy without ever distorting or losing control.
Innovative New Smartphone App for Subwoofer DSP and Control.

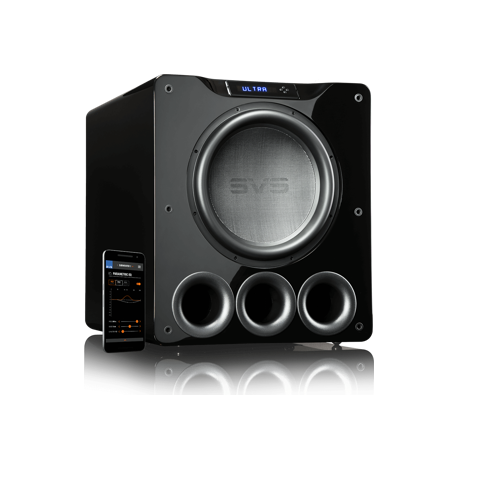

Compatible with Apple® and Android® platforms, the innovative PB16-Ultra smartphone app unleashes the full depth, force and nuance of the world’s finest subwoofer. The groundbreaking SVS subwoofer app controls all DSP functions and conveniently stores custom presets. It’s the easiest way ever to fine tune bass surpassing 16Hz at reference volumes from the comfort of your favorite seat.
For added convenience, 2-way feedback shows updates in real time on both the app and subwoofer interface and Bluetooth connectivity allows adjustments to be made even when the subwoofer is not in sight. Control is also available via IR remote and an intuitive front panel display.
15-280 Hz +/- 3 dB (standard mode – all ports open)
13-280 Hz +/- 3 dB (extended mode – 2 ports open)
14-360 Hz +/- 3 dB (sealed mode – all ports sealed)
2-meter ground plane away from reflective structures (quasi-anechoic).
Roll-off slope specifically optimized to take maximum advantage of available room gain
Black Oak and Piano Gloss Black finish options

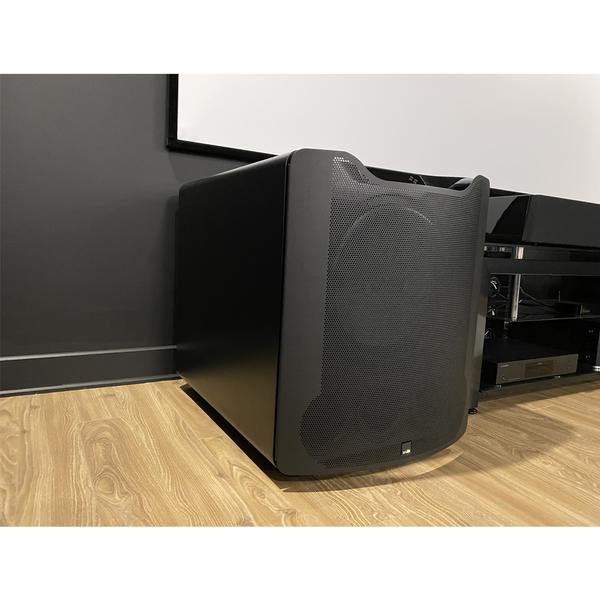

Protective non-resonant steel mesh grille

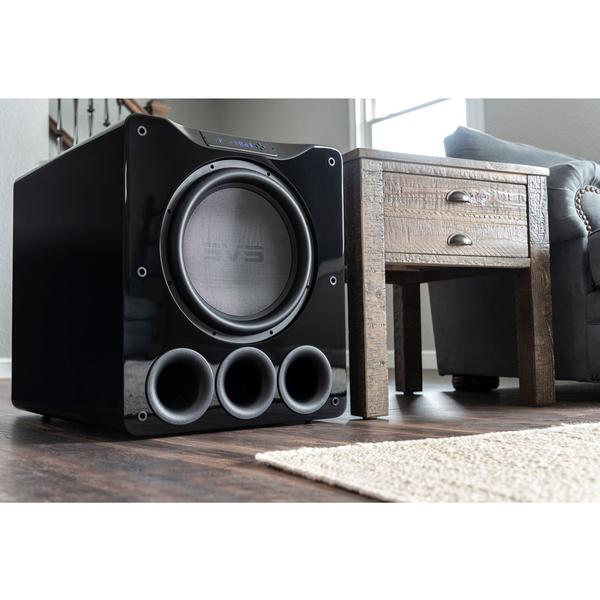

Front-firing 16″ driver
Screw-in rubber feet
Triple 3.5-inch ports
Robust Medium Density Fiberboard(MDF) cabinet construction
Cabinet Dimensions: 25″ (H) x 21.7″ (W) x 28.3″ (D) (without grille)
Cabinet Dimensions (with grille): 25” (H) X 21.7” (W) X 30.9” (D)
Shipped Dimensions: 34.2″ H X 27.5″ W X 38.6″ D
Weight (unboxed): 174.5 lbs
Shipped Weight: 207.3 lbs
SVS 16” Ultra-series driver
Powder-coated cast aluminum basket
Four high-grade ferrite magnets
Finite Element Analysis (FEA)-optimized motor structure
Dual shorting rings reduce gap induction and lower distortion
Extended pole piece improves heat sink and thermal management properties
8” diameter, high-power edge wound voice coil
95mm peak to peak Xmech excursion (82mm Xmax)
Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
Dual 24-strand copper and Nomex composite high-temperature leads provide a pristine electrical connection from the amplifier to the voice coil
Premium glass fiber laminated dustcap and reinforced composite cone sub-structure ensure a light, ridged, and neutral radiating surface
Low-creep rubber long-throw surround for excellent durability and longevity
Sledge STA-1500D DSP amplifier
1,500 watts RMS continuous (5,000+ watts peak dynamic)
Efficient and cool-running Class D topology
High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction
Active PFC (Power Factor Correction) ensures the cleanest 1500W output regardless of your home mains supply
XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications
Convenient front-mounted display with subwoofer controls and 8 digit LED display
Continuously variable (30-200 Hz) 6, 12, 18, or 24 dB/octave low pass filter frequency with disable/LFE setting
Main power rocker switch
Auto-On / On / Trigger Controls
3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
Green standby mode with > 0.5 watts consumption
Input impedance 22kohm (RCA)/ 22kohm (XLR).
RoHS compliant, lead-free construction and world-wide safety certifications
Detachable power cord
Masterful Engineering. 3 Game-Changing Subwoofer Innovations.
One of these groundbreaking innovations would’ve been enough to make the PB16-Ultra an engineering tour-de-force, but the combination of 3 subwoofer firsts propels the SVS PB16-Ultra into the pantheon of all-time great audio products.
