KEF Ci3160RLB-THX

Description

KEF Ci3160RLB-THX In-wall Woofer

The ultimate in Extreme Home Theatre, certified to THX ULTRA2 and THX SELECT2 standards, the formidable KEF Ci R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

Overview

The ultimate in Extreme Home Theatre, certified to THX ULTRA2 and THX SELECT2 standards, the formidable new Ci R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

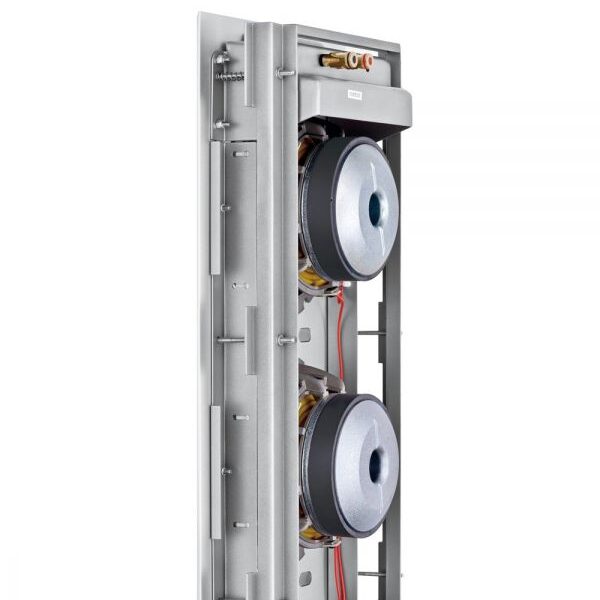

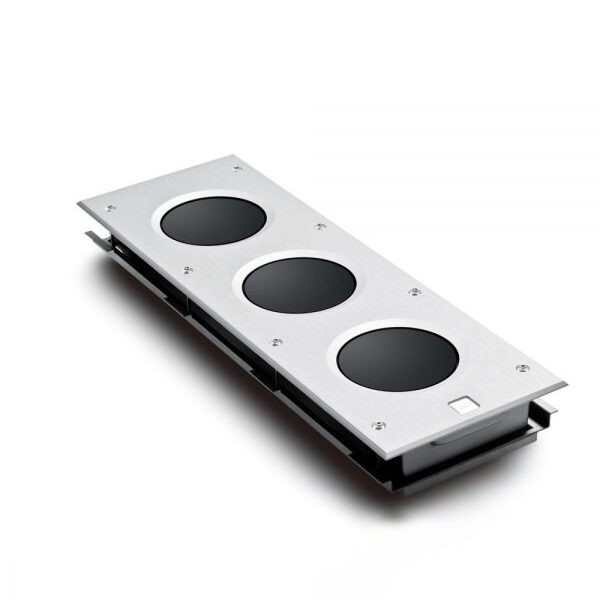

With three high-output 160mm sub-bass drivers mounted to a massive aluminum baffle the Ci3160RLb-THX must be matched with KEF’s powerful KASA500 system amplifier. Each KASA500 can power up to two of the Ci3160RLb-THX subwoofers for even the most demanding theatre installations.

For theatre building flexibility, the remainder of KEF’s Extreme Theatre suite consists of two THX Ultra2 certified in-wall LCR speakers, a THX Ultra2 certified in-ceiling LCR speaker, as well as a smaller in-wall subwoofer and smaller in-wall LCR.

Technical Specifications:

NOMINAL IMPEDANCE: 4 Ohms
SENSITIVITY: 92dB (2.83V/ 1m)
FREQUENCY RESPONSE: 20Hz – 140Hz (±6dB) open backed
DRIVE UNITS: LF: 3 x 160mm (6.5 in.)
AMPLIFIER REQUIREMENTS: KASA500
PRODUCT EXTERNAL DIMENSION (H X W X D)
680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.)
With Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
CUT-OUT DIMENSIONS (H X W): 660 x 209mm (25.98 x 8.23 in.)
MOUNTING THICKNESS
Ceiling Thickness (Maximum) : 40mm (1.58in.)
Ceiling Thickness (Minimum) : 6mm (0.24in.)
MOUNTING DEPTH FROM SURFACE: 88.5mm (3.84 in.)
NET WEIGHT: 10.9 kg (24.1 lbs)
UNIT MEASUREMENT: Piece
