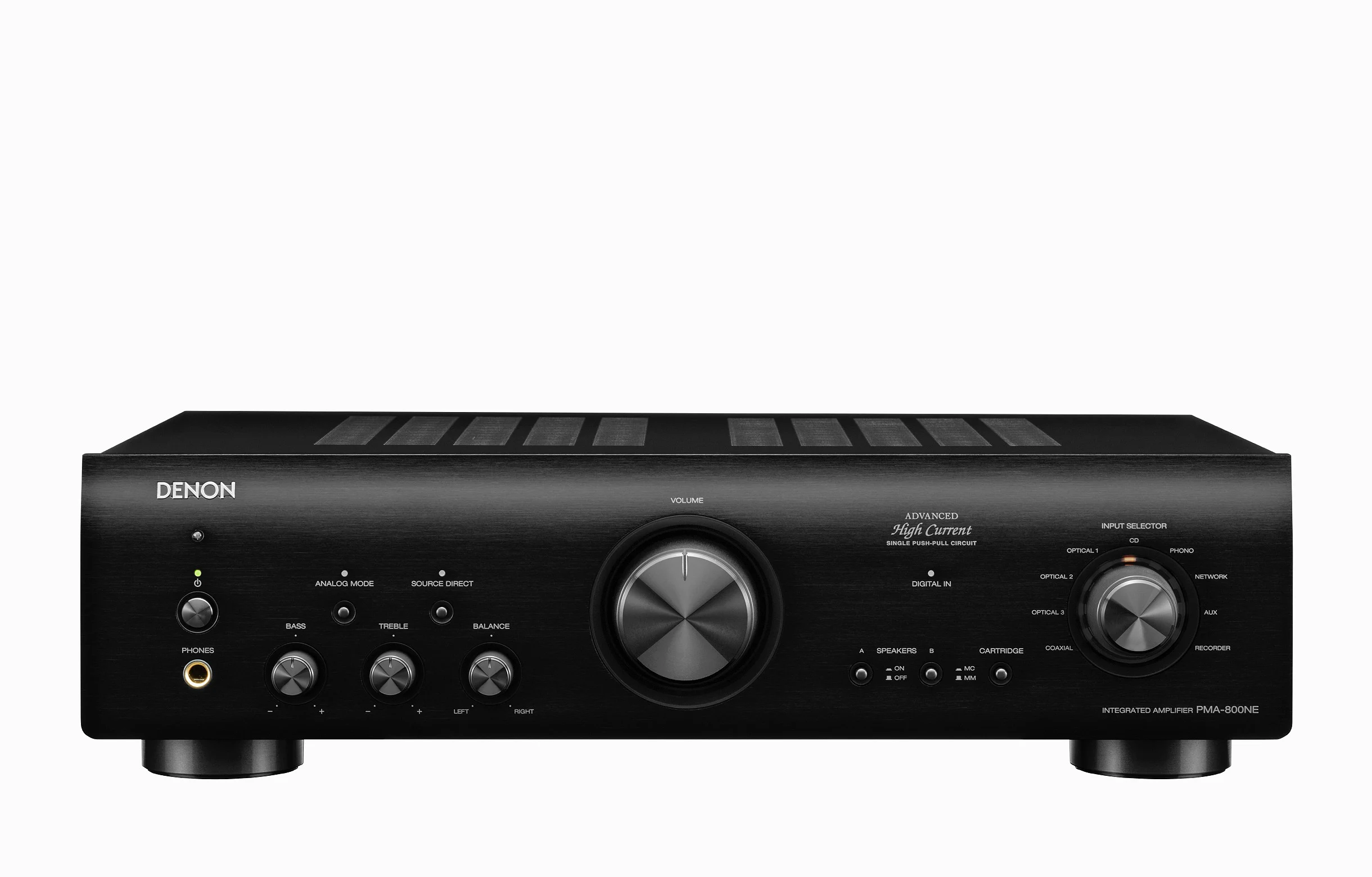

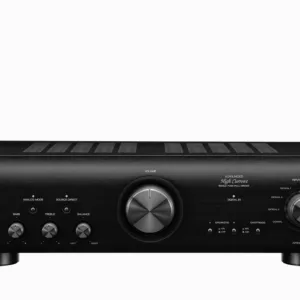

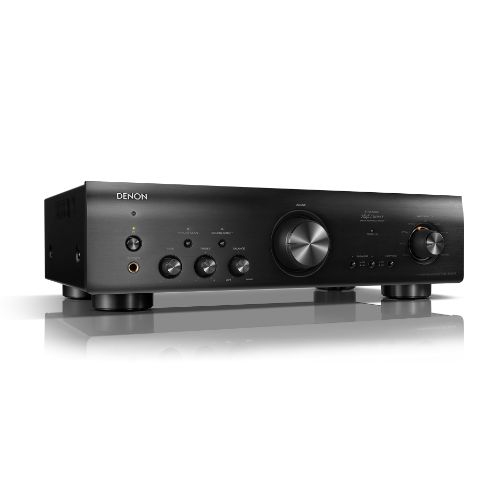

Denon PMA-800NE Amplifier:
Featuring digital inputs and a built-in phono equalizer, the Denon PMA-800NE integrated amplifier sets new standards in premium audio performance with the power to drive all your content.
The Denon PMA-800NE integrated amplifier sets new heights in premium audio performance with digital inputs and a built-in phono equalizer. Listen to your favorite high-resolution audio content with the 192kHz/24bit D/A converter. Powered by the Denon Advanced High Current (AHC) single push-pull circuit power amplifier, thePMA-800NE provides exceptional sound quality that balances high power with delicate, musical details. Power your loudspeakers with the Denon PMA-800NE integrated amplifier. Engineered with remarkable Denon amplifier technology, the PMA-800NE delivers 85 Watts of power-per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
Analog Mode allows the PMA-800NE to operate as a purely analog amp, disabling coaxial, digital and optical digital inputs while you listen to an analog source. Turn on Analog Mode to close power to the dedicated digital power source and stop operation of the digital input circuity, avoiding any high frequency influence on the analog section of the PMA-800NE. Enjoy your favourite analog sources with uninhibited clarity and detailed reproduction.
MM and MC Phono Equalizer
The PMA-800NE includes a phono equalizer that supports input from both MM and MC cartridges. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design of the PMA-800NE phono equalizer significantly improves sound.
Direct Mechanical Ground Construction for Pristine Sound
Vibration-resistant design reduces the adverse audio effects of heavy components within amplifiers so sound quality meets Denon standards. The power transformer — which is the largest vibration source among amplifier components — is outfitted with a 1.6mm thick steel plate to the mount, suppressing vibration created by the transformer as well as external vibration toward the transformer. By directly supporting the transformer with a steel plate, the vibration surrounding the chassis is reduced resulting in pristine sound.
Optical and Coaxial Digital Inputs
The PMA-800NE features three Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve sound and visual quality of your TV audio, Blu-Ray, media players and more. Also use it to input high-resolution sound from an audio source on your computer.
Main Transformer with Individual Wiring
To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-800NE has separate coiled wires for the audio and control circuits. An integrated micro-processor features Stop Mode for even greater sound quality while you listen.
Total Harmonic Distortion 0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz
Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%): 50 W + 50 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%): 85 W + 85 W
Input Sensitivity: MM PHONO (MM): 2.5 mV / 47 kΩ/kohms
PHONO (MC): 200 μV / 100 Ω/ohms
Signal to Noise Ratio: MM/MC 86 dB / 71 dB
Input Sensitivity: High level 105 mV / 40 kΩ/kohms (SOURCE DIRECT: Off)
105 mV / 17 kΩ/kohms (SOURCE DIRECT: On)
Signal to Noise Ratio: High level 105 dB
Treble Control: 10 kHz ±8 dB
Bass Control: 100 Hz ±8 dB
