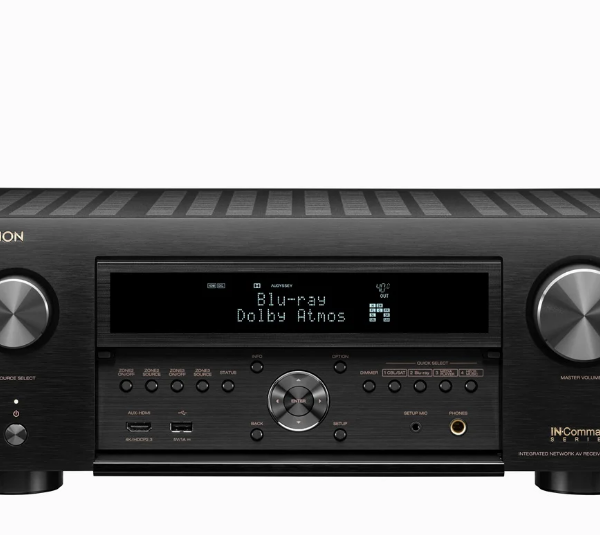

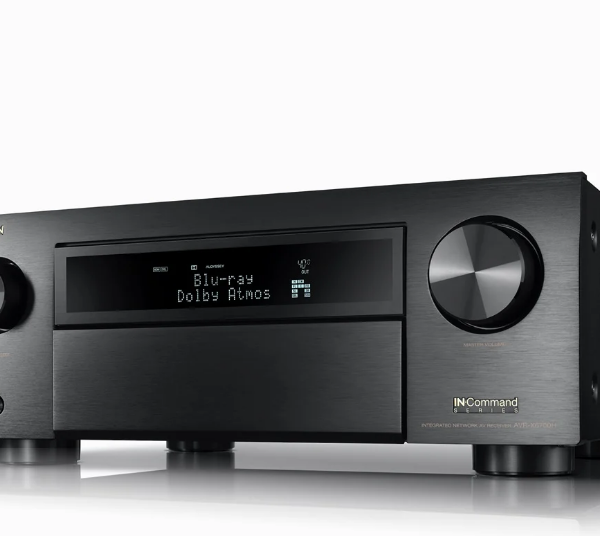

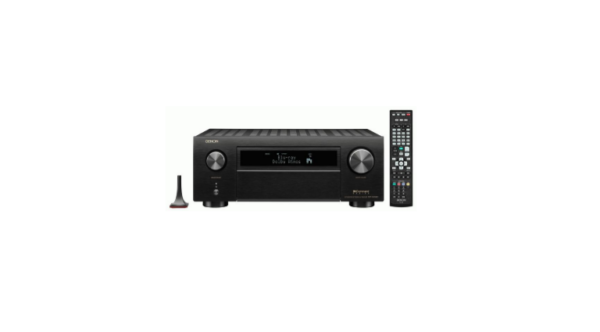

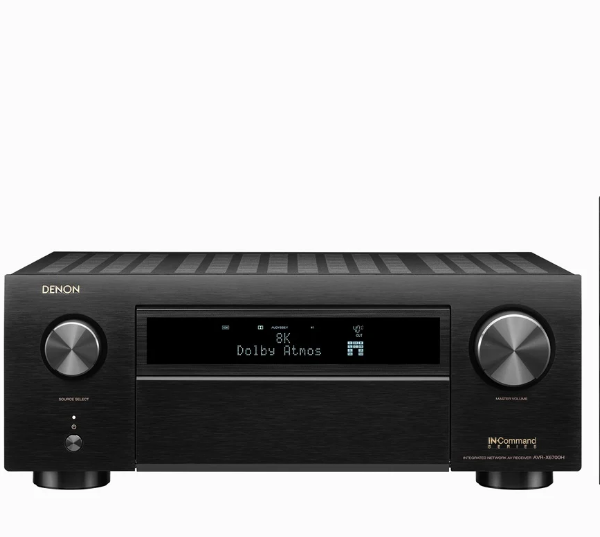

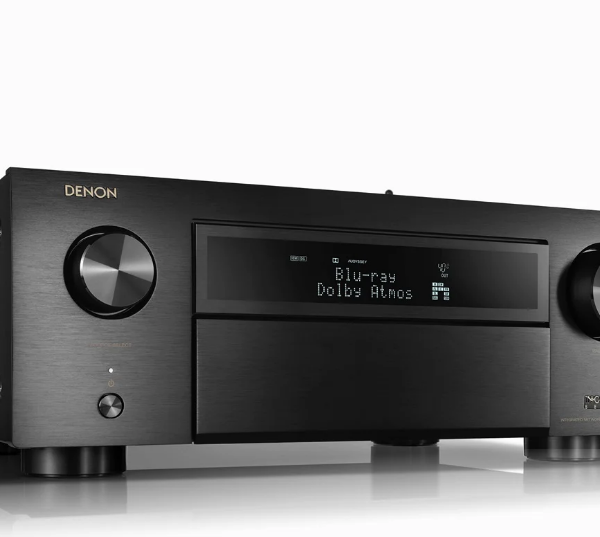

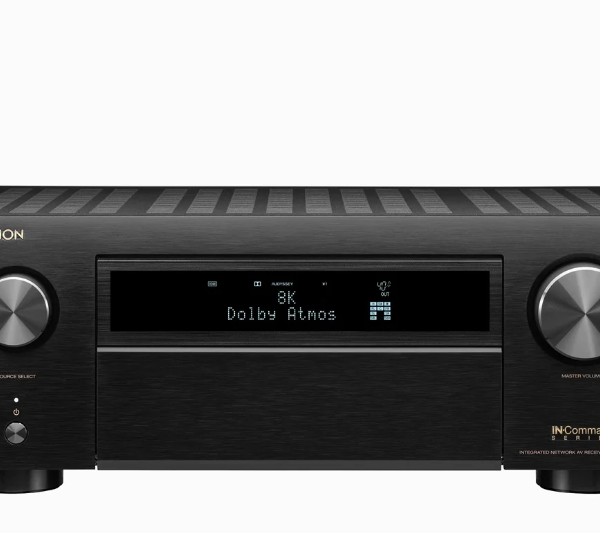

DENON AVR-X6700H (2020)
Engineered for excellence
Premium 11.2 channel 8K AV receiver with 140W per channel that fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization
Technology, DTS:X®, DTS Virtual:X™, DTS:X® Pro, IMAX® Enhanced and Auro-3D®. The AVR-X6700H also supports the latest HDMI specifications such
as 8K/60Hz and 4K/120Hz pass-through, ALLM, Dynamic HDR, HDR10+ and eARC support.

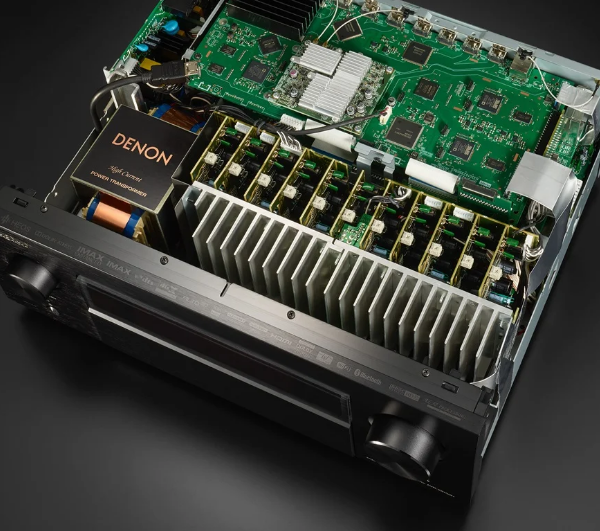

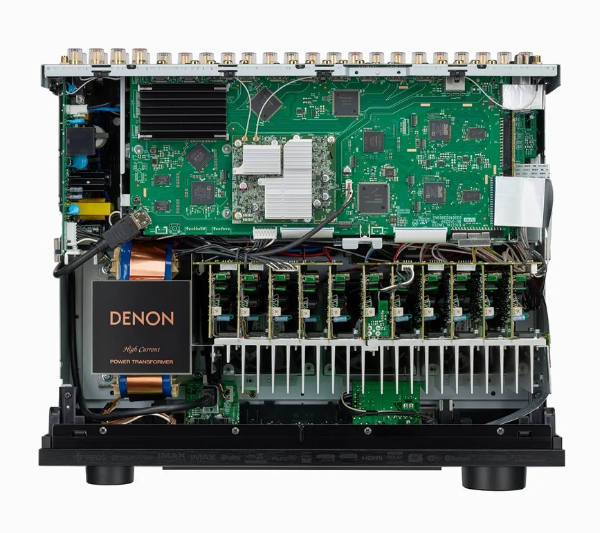

Premium-performance discrete 11-channel amplifier in a monolithic design
Delivers a precise and powerful 140W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2 ch. drive),
to provide trusted, precise and powerful Denon sound.
Full 8K/60Hz and 4K/120Hz support
With the latest HDMI support, enjoy 8K quality video from your 8K source devices. One 8K input and 2 outputs allow for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 8 HDMI inputs.
Enjoy your favorite 3D audio formats
Enjoy immersive, 3D audio from sources like Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual:X™, DTS:X® Pro, IMAX Enhanced and Auro-3D®.
DTS:X® Pro support
With the latest in DTS technology, enjoy DTS:X® Pro that can process up to 13 channels via future firmware update.
Enhanced Audio Return Channel (eARC) HDMI support
Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from your smart TV app to your AV receiver.
The latest in video compatibility
The latest HDR format support including HDR10, HDR10+ (new in 2020), HLG, Dolby Vision, as well as
Dynamic HDR (New in 2020), to provide the greatest picture quality for brightness, clarity and contrast.
The next generation in movie immersion
With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear picture in the highest quality available.
The latest in gaming experiences
With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging, as well as reduced lag and latency from features.
New DSP for more processing power
With 13.2 ch. max audio processing, connect external power amplifier to the AVR-X6700H to power
two additional channels to enjoy a 13.2 ch. home theater setup.
Works with your favorite voice services
Use your voice to control the AVR-X6700H and wireless music services hands-free with Amazon Alexa, Google Assistant, Apple Siri, and Josh.ai.
Wireless streaming from the most popular music services
Enjoy all of your favorite music services like Spotify®, Pandora®, Amazon Music HD, TIDAL, SiriusXM,
Deezer and more. The AVR-X6700H also lets you enjoy your music via AirPlay 2, letting you stream
your favorite tracks from Apple Music.
HEOS® Built-in wireless multi-room music streaming technology
Listen from any room for a connected, whole-home audio experience. The AVR-X6700H also works
with the newly introduced Denon Home speakers to let you enjoy a whole-home audio experience.
Number of Power Amps: 11
205 watts per channel (6 ohms, 1 kHz, THD:1%, 1 ch driven)
175 watts per channel (6 ohms, 1 kHz, THD:0.7%, 2 ch driven)
140 watts per channel (8 ohms, 20Hz–20kHz, THD:0.05%, 2 ch driven)
Speaker Impedance: 4-16Ω/ohms
Input Sensitivity/ Impedance: 200 mV
Frequency Response: 10Hz–100kHz – +1, -3 dB (Direct Mode)
S/N Ratio: 100 dB (IHF-A weighted, Direct Mode)
Tuning Frequency Range: 87.5–107.9 MHz
Tuning Frequency Range: 520–1710 kHz
Power Supply: 120V/60 Hz
Power Consumption: 750W (Standby 0.1W, CEC standby 0.5W)
Power Consumption (No Sound):
65W (ECO Mode On)
110W (ECO Mode Off)
Maximum Dimensions (WxDxH)
Antenna:Horizontal (in): 17.1 x 15.3 x 6.6
Antenna:Vertical (in): 17.1 x 15.3 x 9.3
w/o Antenna: (in): 17.1 x 14.9 x 6.6
Carton Dimensions (Packaging) (WxDxH) (in): 20.9 x 18.3 x 11.9
Weight (lbs): 32.0
Weight (Packaging) (lbs): 37.9

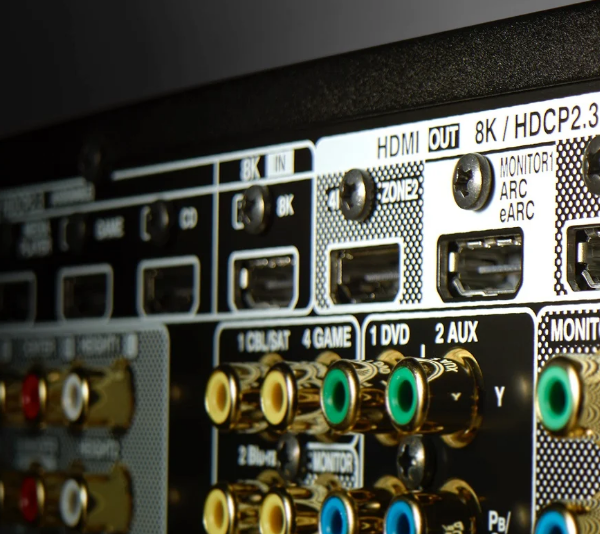

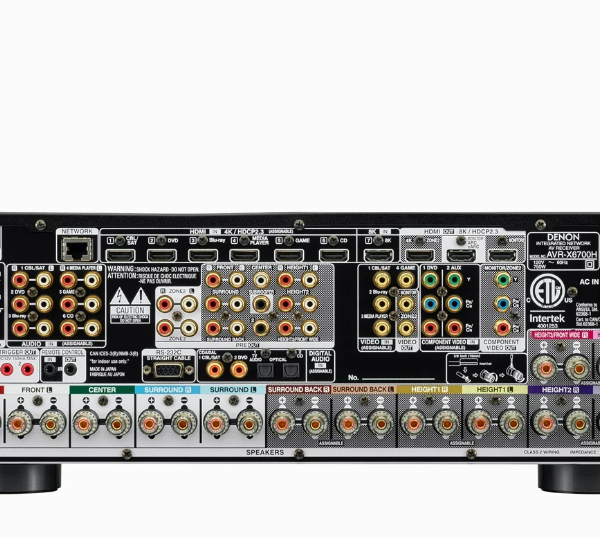

HDMI (Front + 1): x7 + 1
8K HDMI: x1
Component (Video): x2
Composite (Video): x4
Analog Audio: x6
Digital Coaxial: x2
Digital Optical: x2
USB Front: x1
HDMI Monitor (eARC): x3
8K HDMI: x2
Component (Video): x1
Composite Monitor: x2
Audio Pre-out (SW): 13.2 ch
Zone Out: x3
Microphone Port: x1
FM/AM Tuner Antenna: x1
